Show DSR 150R mic

Description

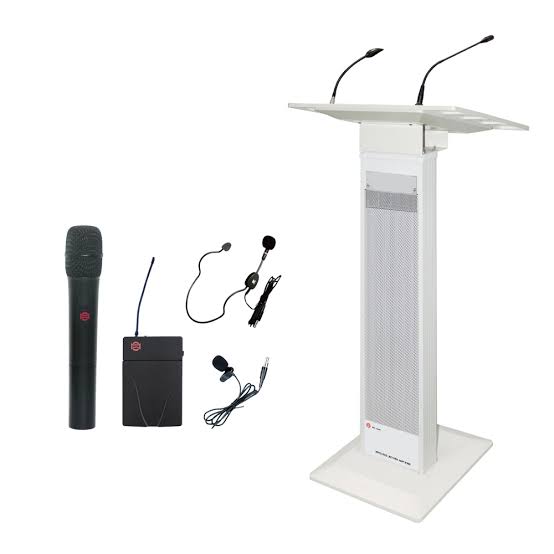

DS-150R Wireless Mic Lectern System
Features
• Class-D 100W RMS
• 3 x 6.5” Full Range Transducers
• 124 dB SPL Max
• Bluetooth / MP3 Recorder & Player
• 1 ch UHF receiver
• Voice Priority
• Optional Rechargeable Lithium-ion Battery
DS-150R is a portable and compact Lectern System dedicated to conference, house of worship, schools and various presentation applications.
The DS-150R desk features a gooseneck light and a gooseneck microphone equipped with a voice priority function. The wireless UHF receiver can be used with U-899H or U-899P Mic transceivers for moving presenters.
A MP3 module can record the presentation, combined with a USB/Bluetooth player.
The system also provides a combo XLR/Jack Input with a Mic/Line selector for additional signal IN.
A 35 mm jack socket can be used to send the MIX OUTPUT to additional devices like an extra PA system. DSR-150 delivers 100W RMS thanks to a Class-D amplifier driving three 6.5” full range transducers.
The optional rechargeable lithium-ion battery provides unmatched flexibility and portability.

Specifications
MODEL
System Type
Transducers Low
Power Output
Frequency Response
Max SPL
Input Sensitivity
Wireless Frequency
Portable MIC
Portable Lamp
USB Function
External Controls
Battery
Power Supply
Enclosure Construction
Dimension (W x D x H)
Weight
MODEL
Channel
Frequency Band
Oscillation mode
Modulation Mode
Frequency Stability
RF output power
Spurious Emission
THD
Frequency Response
Current drain
Battery
Operating Temperature
Tone key Frequency
Dimension (W x D x H)
Weight
Dynamic
Mic / Instrument Input
Microphone Type
DS-150R
Powered Column System
3 x 6.5” Full Range
Class-D 100W
100 Hz-16kHz (-6dB)
124dB Max
• MIC1:-30dB+/-2dB
• Input1Line:-2dBu+/-2dB
• Input1Mic:-30dBu+/-2dB
• AUX:-2dBu+/-2dB
UHF 470 ~ 960 MHz
Gooseneck MIC for speech with on/off switch Gooseneck Halogen Light for reading with on/off switch USB socket for 5V charge
• DigitalMP3+Recording+Bluetoothwithremotecontrol
• 2BandEQforinputs,VoicePriorityon/offswitch
• Input1/MIC/AUXVolumeControls/MASTERVolumeControl • PowerONwithgreenLED,LimiterwithredLED
At least 4 hours / Use time: Music Player more than 5 hours 110-240V ~ 50/60Hz and Battery Powered
Body in extruded Aluminum; Resistant Paint; Metal grille with Foam 420 x 580 x 1135 mm (16.54’’ x 22.83’’ x 44.68’’)
15.2 kg (33.5 lbs)
U-899H Handled Mic Transmitter U-899P Pocket Transmitter Multi-channel, up to 16 frequency presets for each frequency band
470 ~ 960 MHz Dependent on applicable country regulation
PLL UHF Synthesized
FM (F3E)
+/- 0.005% (-10° ~ 50°C) 10mW
50dBm
< 0.8% (1kHz)
Connections
• 1xComboXLR/6.35mmJackInput,1x35mmJackAUXInput, • 1×1⁄4”JackMixout,1channelUHFWirelessMicrophone
50Hz-12kHz (+/- 3dB) “AA” type x 2 pcs (6 hours use)
48 (diam.) x 245 mm
0.2 kg
Dynamic Capsule
50Hz-12kHz (+/- 3dB)
“AA” type x 2 pcs (6 hours use)
65 x 85 x 25 mm
0.082 kg
Input: Dynamic Mic Condenser Mic./ Elec. Instrument
Specifications subj
